Powder Coating Equipment Applications Guide: From DIY to Industrial Manufacturing
Powder Coating Equipment Applications Guide: From DIY to Industrial Manufacturing
Powder coating technology has evolved far beyond large-scale industrial applications. Today, powder coating equipment serves a wide spectrum of users — from home DIY enthusiasts to high-volume metal finishing plants. This article breaks down the equipment requirements and application scenarios for three distinct user segments.
Part 1: Laboratory & Home DIY Applications
Who Is This For?
- Hobbyists and DIY enthusiasts
- Small product developers and prototyping labs
- Educational institutions (vocational schools, technical training centers)
- Small-batch custom part makers
Typical Applications
| Application | Examples |
|---|---|
| Automotive parts (small) | Brackets, engine covers, brake calipers |
| Home decor | Light fixtures, furniture hardware, picture frames |
| Sporting goods | Fishing reel components, bicycle accessories |
| Electronics enclosures | Small project boxes, control panels |
| Prototype coating | Product development samples, color testing |
Recommended Equipment
For this segment, simplicity, affordability, and compact size are key priorities.
| Equipment | Specification | Purpose |
|---|---|---|
| Manual electrostatic spray gun | 100-200 g/min powder output | Basic powder application |
| Small curing oven | Benchtop or small cabinet type, 160-250°C max temperature | Curing small parts |
| Powder coating booth | Small portable booth with basic filtration | Overspray containment |
| Basic accessories | Powder sieve, spray mask, grounding clip | Supporting tools |
Key Considerations for This Segment
- Low entry cost: Systems typically range from $200 to $2,000
- Space efficiency: Compact footprint for garage or small workshop
- Ease of use: Simple controls, minimal training required
- Safety features: Basic grounding and ventilation sufficient
- Color change: Manual cleaning acceptable due to low changeover frequency
Part 2: Small Workshops — Auto Customization, Hardware Finishing, Furniture Manufacturing
Who Is This For?
- Automotive customization shops (wheels, chassis, accessories)
- Custom hardware manufacturers (hinges, handles, fasteners)
- Small furniture factories (metal frames, table legs, chair components)
- Job shops and contract coating services
- Small OEM parts suppliers
Typical Applications
| Industry | Coated Parts |
|---|---|
| Auto customization | Wheel rims, roll bars, bumper guards, suspension components |
| Hardware manufacturing | Door handles, drawer pulls, lock plates, brackets |
| Furniture industry | Chair frames, table bases, shelving components, office furniture |
| Contract coating | Customer-supplied parts, small batch runs, color matching services |
Recommended Equipment
This segment requires a balance between productivity and flexibility. Semi-automatic and efficient manual systems are ideal.
| Equipment | Specification | Purpose |
|---|---|---|
| Professional manual spray gun | 60-90 kV, 200-500 g/min output, with advanced electrostatic control | Consistent quality for batch production |
| Medium curing oven | Walk-in or conveyor style, 2-5 meter length, 160-200°C curing temperature | Higher throughput |
| Powder recovery system | Cyclone + cartridge filter, 80-95% recovery rate | Cost-saving through powder recycling |
| Spray booth | 2-3 meter width, with proper airflow and filtration | Clean working environment |
| Pre-treatment station | Manual wash booth or small washer | Surface preparation |
| Quick color change system | Suction-feed system with removable powder hopper | Minimize downtime between colors |
Key Considerations for This Segment
- Production flexibility: Quick changeover between different part shapes and colors
- Consistent quality: Reliable electrostatic performance for uniform film thickness
- Recovery efficiency: Powder recycling directly impacts profitability
- Space optimization: Compact layout while maintaining workflow
- Training support: Operator training for optimal settings (voltage, distance, air pressure)
- Typical investment range: $2,000 – $20,000 depending on automation level
Part 3: Large-Scale Metal Surface Finishing — Industrial Production Lines
Who Is This For?
- High-volume metal parts manufacturers
- Automotive OEM and Tier 1 suppliers
- Construction material producers (aluminum profiles, steel studs, panels)
- Appliance manufacturers (refrigerators, washing machines, ovens)
- General industrial finishing plants
Typical Applications
| Industry | Coated Parts | Annual Volume |
|---|---|---|
| Automotive OEM | Wheels, bumpers, chassis components, trim parts | 500,000+ units |
| Construction | Aluminum window/door profiles, curtain walls, roofing panels | Continuous extrusion lines |
| Appliance | Washer/dryer panels, refrigerator doors, microwave cavities | High-mix, high-volume |
| General industrial | Shelving, lockers, electrical enclosures, agricultural equipment | Batch or continuous |

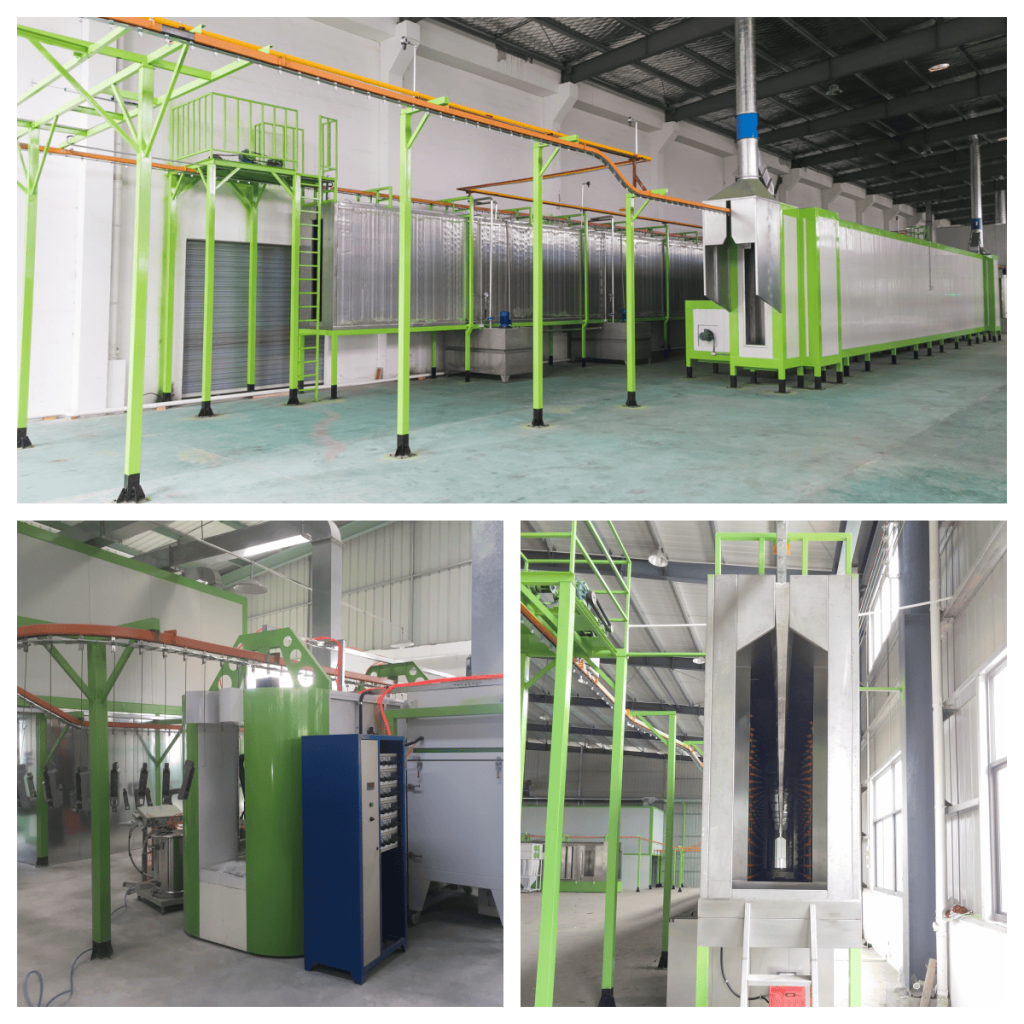

Recommended Equipment — Fully Automated Turnkey Lines
Large-scale operations require integrated, high-efficiency systems with minimal manual intervention.
| Equipment | Specification | Purpose |
|---|---|---|
| Automatic spray guns | 10-30 guns per line, oscillating or fixed mount, PLC-controlled | High-speed, uniform coverage |
| Chain-on-edge conveyor | Continuous transport system, variable speed control | Workpiece movement through all stages |
| Multi-stage pre-treatment | 5-9 stage washer (degrease → rinse → phosphate → DI rinse) | Superior adhesion and corrosion resistance |
| Curing oven | Long tunnel oven (20-50 meters), zoned temperature control | Consistent cure across all parts |
| Powder recovery system | High-efficiency cyclone + cartridge array, 95-99% recovery | Maximum material utilization |
| Color change system | Automatic purge & clean, color change within 10-15 minutes | Rapid product changeover |
| Quality control system | Film thickness gauge, adhesion tester, gloss meter, cure check | In-process quality assurance |
| Central control system | SCADA or IoT-enabled PLC with data logging | Process monitoring and traceability |
Key Considerations for This Segment
- High automation: Minimal labor requirement per unit output
- Process consistency: Precise control of voltage, powder flow, temperature, and line speed
- Recovery efficiency: Direct impact on material cost — 99% recovery pays for itself quickly
- Energy efficiency: Optimized oven insulation, heat recovery systems reduce operating costs
- Data integration: Production data for traceability, quality reporting, and maintenance planning
- Typical investment range: $50,000 – $500,000+ depending on line length and automation level
Comparison Table: Three User Segments at a Glance
| Aspect | DIY / Lab | Small Workshop | Industrial Production Line |
|---|---|---|---|
| Annual volume | < 1,000 parts | 1,000 – 100,000 parts | 100,000 – 5M+ parts |
| Equipment type | Basic manual | Professional manual / semi-auto | Fully automatic |
| Curing method | Batch oven | Walk-in / small conveyor | Continuous tunnel oven |
| Powder recovery | None or basic | Cyclone + filter (80-95%) | High-efficiency (95-99%) |
| Color change time | 2-10 min (manual) | 5-20 min | 5-15 min (automated) |
| Investment range | $200 – $2,000 | $2,000 – $20,000 | $50,000 – $500,000 |
| Space required | 20-50 m² | 50-200 m² | 500-5,000 m² |
| Typical ROI | 6-12 months | 12-24 months | 18-36 months |
Conclusion
Selecting the right powder coating equipment depends entirely on your production scale, budget, and quality requirements.
| Segment | Best Fit |
|---|---|
| DIY / Laboratory | Entry-level manual systems for small-batch prototyping and hobby work |
| Small workshop | Professional manual or semi-automatic systems with recovery — ideal for auto, hardware, and furniture applications |
| Industrial line | Fully automated turnkey systems with high recovery, fast color change, and process controls |
