Achieve uniform, high-quality finishes. Cut powder waste and energy use.Give operators simple, repeatable controls. Keep line performance consistent across all shifts.
28 products found
Features Compact mobile powder coating Unit with outstanding performance Delivers flawless results on 2nd & 3rd recoats Premium coating performance at cost-effective factory price Be ideal for coating wheels, other automotive parts and sample test Corona ring version optional Technical Data Input voltage 100-240V Frequency 50/60HZ Input rated current 0.1A Powder hopper volume 700mL Max. Powder Output per Gun 550g/min Gun weight 480g Gross weight 8kg Packing size 38x25x15cm
Features Adjustable voltage and air for diverse coating workpieces Stable powder flow boosts transfer efficiency and reduces overspray waste Premium coating performance at cost-effective factory price Global fast spare parts delivery to cut production downtime Technical Data Input voltage 100-240V Frequency 50/60HZ Input rated current 0.1A Powder hopper volume 45L Max. Powder Output per Gun 550g/min Gun weight 480g Gross weight 35kg Packing size 45x40x57cm
Features Compact and portable design Cuts material waste while evenly coating tight corners and complex workpieces Protects operators from electrostatic shock With a 4.5L powder container for quick color changeovers Adjustable pulse spraying function optimizes powder coverage Technical Data Input voltage 100-240V Frequency 50/60HZ Input rated current 0.1A Powder hopper volume 4.5L Max. Powder Output per Gun 550g/min Gun weight 480g Gross weight 5kg Packing size 40x35x20cm
Features In-house built robust control box for heavy-duty workshop operation Stable powder flow boosts transfer efficiency and reduces overspray waste Premium coating performance at cost-effective factory price Global fast spare parts delivery to cut production downtime Technical Data Input voltage 100-240V Frequency 50/60HZ Input rated current 0.1A Powder hopper volume 45L Max. Powder Output per Gun 550g/min Gun weight 480g Gross weight 41kg Packing size 70x48x59cm
Features Direct powder feeding from original powder box Ultra-fast color change in only 30 seconds Compatible with all types of coating powders Compact footprint, minimal floor space required Technical Data Input voltage 100-240V Frequency 50/60HZ Input rated current 0.1A Powder hopper volume - Max. Powder Output per Gun 550g/min Gun weight 480g Gross weight 41kg Packing size 70x48x59cm
Features Delivers ultra-high powder transfer efficiency with flawless uniform coatings Achieves full coverage on hard-to-reach corners Premium coating performance at cost-effective factory price Global fast spare parts delivery to cut production downtime Technical Data Input voltage 100-240V Frequency 50/60HZ Input rated current 0.1A Powder hopper volume 45L Max. Powder Output per Gun 550g/min Gun weight 480g Gross weight 41kg Packing size 70x48x59cm

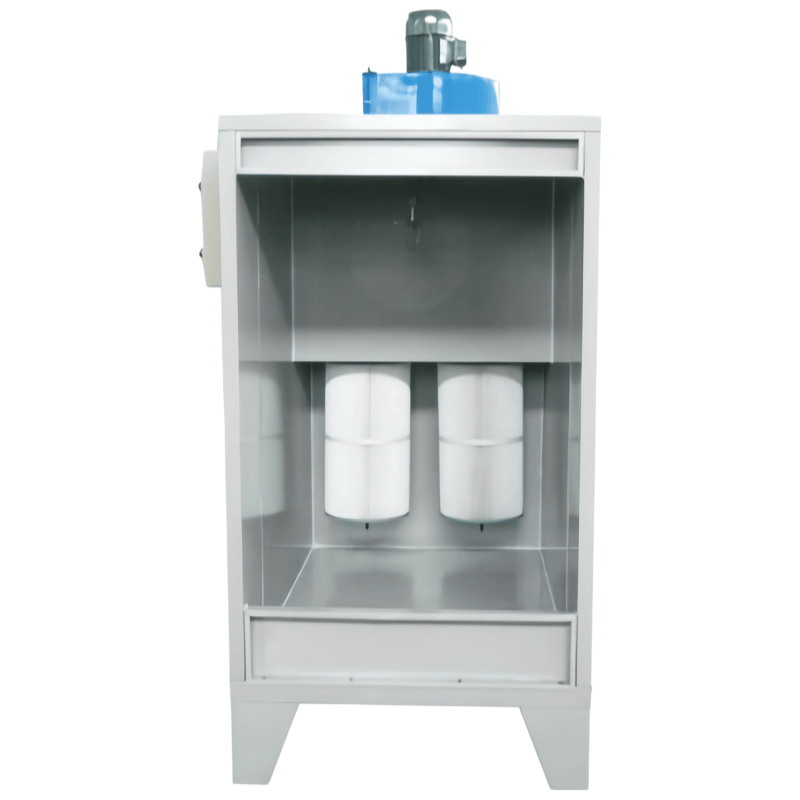

Features Easy loading & unloading of rim and other automotive components Low investment for small batch processing Effectively isolate floating powder Powder-coated metal sheets for superior durability Low-cost coating solution for small-batch diversified workpieces Technical Data Booth Dimension Customized Voltage 220V/380V Input rated current 50/60HZ Booth Type Open-Face Fan Power 2.2kw Filter Material Polyester Filter Quantity 2 Cleaning System Pulse
Features Integrated backpack recovery unit, ultra-compact & small footprint Built-in rear filter chamber, no extra external air ducts, easy installation Automatic reverse-pulse filter cleaning, 95%–98% powder recycling rate Quick-disassembly design, fast color change within 8-12 mins Single-operator design, ideal for small-batch multi-color workpieces Technical Data Booth Dimension Customized Voltage 220V/380V Input rated current 50/60HZ Booth Type Open-Face or Tunnel Fan Power 5.5kw Filter Material Polyester Filter Quantity 12 Cleaning System Pulse

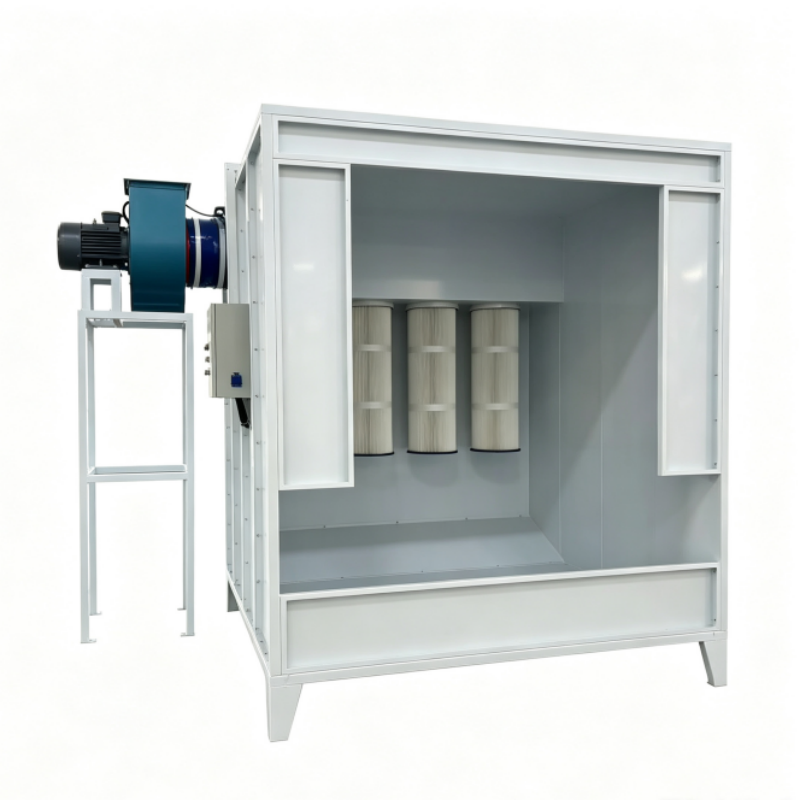

Features Easy loading & unloading of locks, wheel hubs and small hardware Low investment for small batch processing Effectively isolate floating powder Powder-coated metal sheets for superior durability Low-cost coating solution for small-batch diversified workpieces Technical Data Booth Dimension Customized Voltage 220V/380V Input rated current 50/60HZ Booth Type Walk-in Fan Power 4kw Filter Material Polyester Filter Quantity 5or 6 Cleaning System Pulse

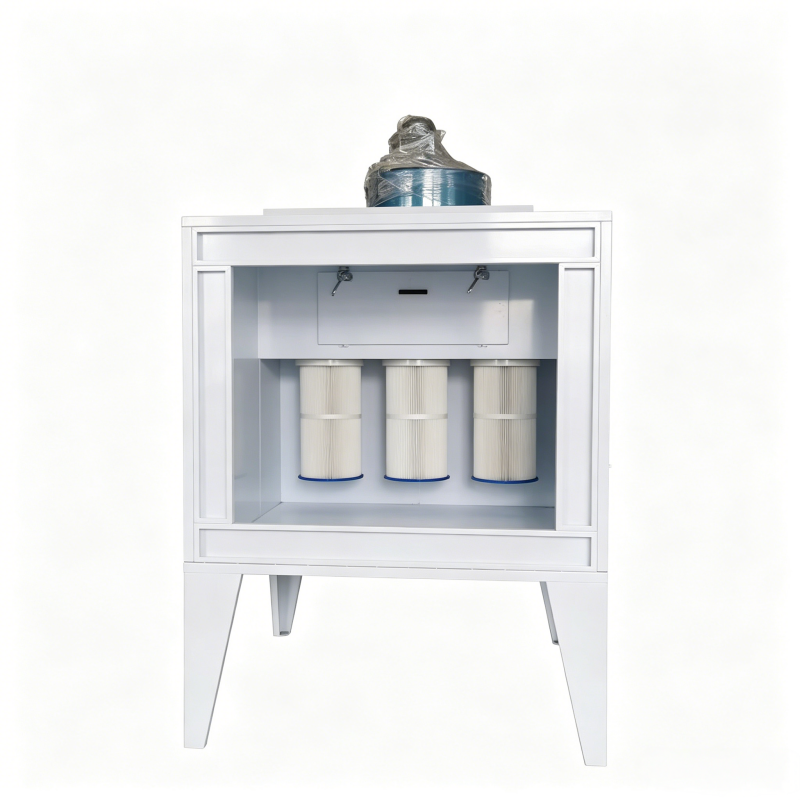

Features Compact mobile powder coating Unit with outstanding performance Single-operator design, lower labor expenditure Automatic reverse-pulse filter cleaning, minimal maintenance Powder-coated metal sheets for superior durability Low-cost coating solution for small-batch diversified workpieces Technical Data Booth Dimension Customized Voltage 220V/380V Input rated current 50/60HZ Booth Type Open-Face Fan Power 1.1kw Filter Material Polyester Filter Quantity 2 or 3 Cleaning System Pulse
Features Easy loading & unloading of rim and other automotive components Low investment for small batch processing Effectively isolate floating powder Powder-coated metal sheets for superior durability Low-cost coating solution for small-batch diversified workpieces Technical Data Booth Dimension Customized Voltage 220V/380V Input rated current 50/60HZ Booth Type Open-Face Fan Power 2.2kw Filter Material Polyester Filter Quantity 2 Cleaning System Pulse

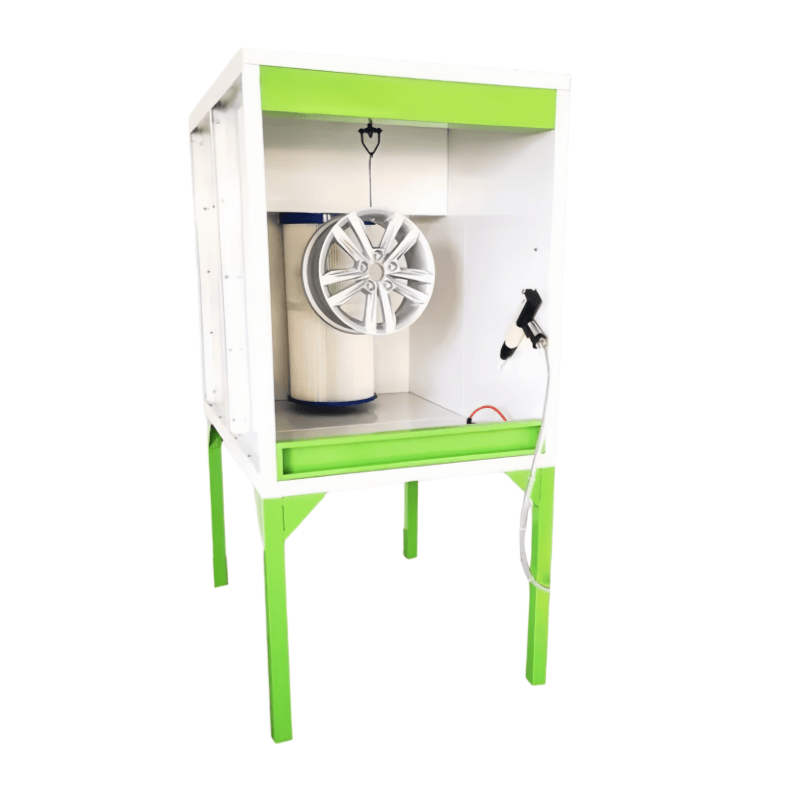

Features Easy loading & unloading of rim and other automotive components Low investment for small batch processing Effectively isolate floating powder Powder-coated metal sheets for superior durability Low-cost coating solution for small-batch diversified workpieces Technical Data Booth Dimension Customized Voltage 110V Input rated current 60HZ Booth Type Open-Face Fan Power 1.1kw Filter Material Polyester Filter Quantity 1 Cleaning System Pulse

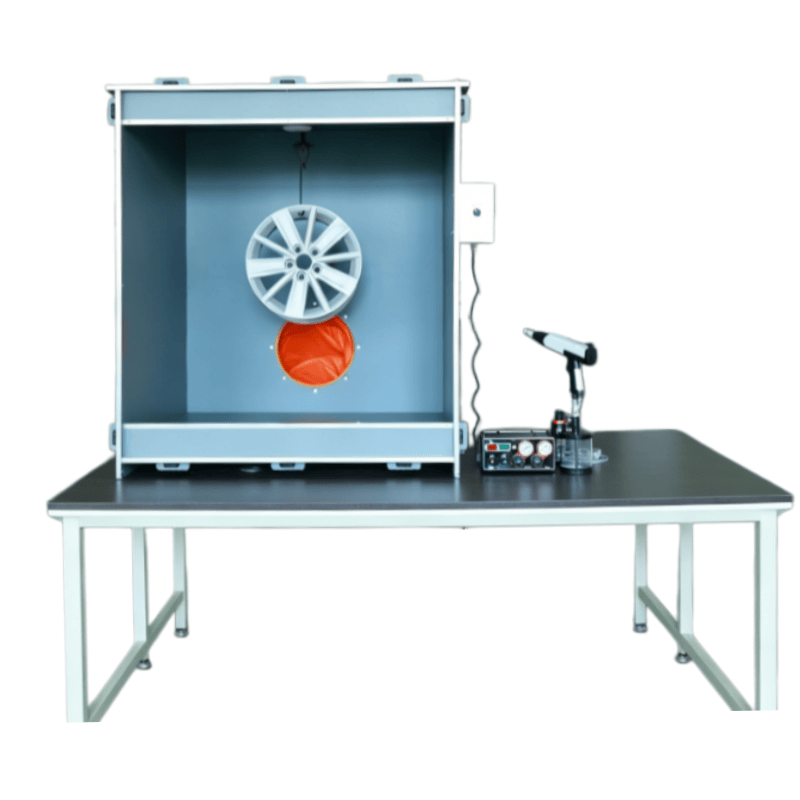

Features Modular structure, quick & easy installation Made of anti-static thick PP panels Small footprint, saves workshop space Smooth surface, no powder adhesion, easy color change Perfect for small parts manual powder coating Captures overspray effectively, reduces powder waste Technical Data Booth Dimension Customized Voltage 110V Input rated current 60HZ Booth Type Open-Face Fan Power 1.1kw

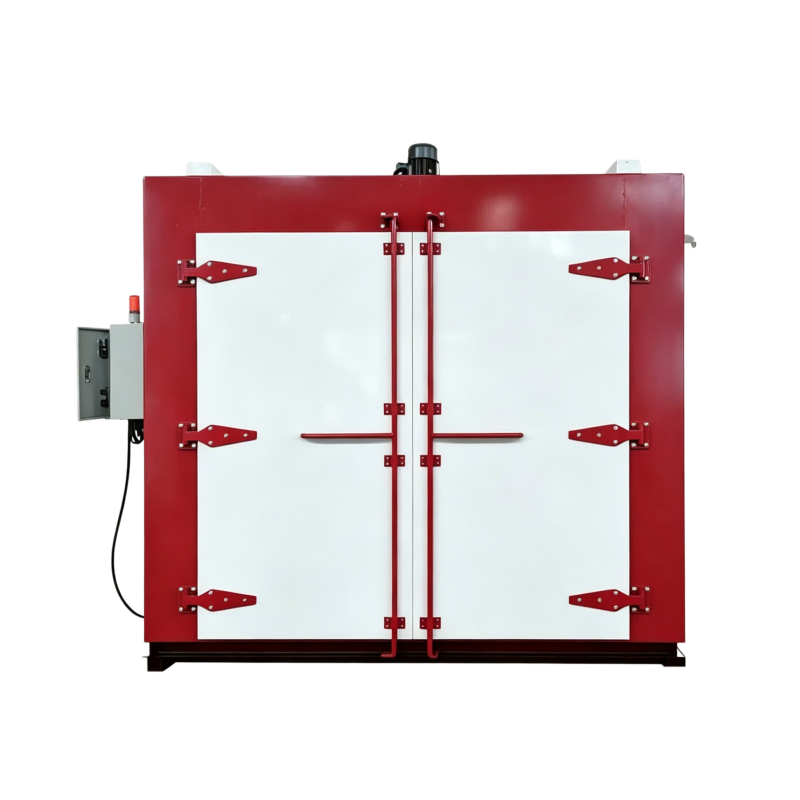

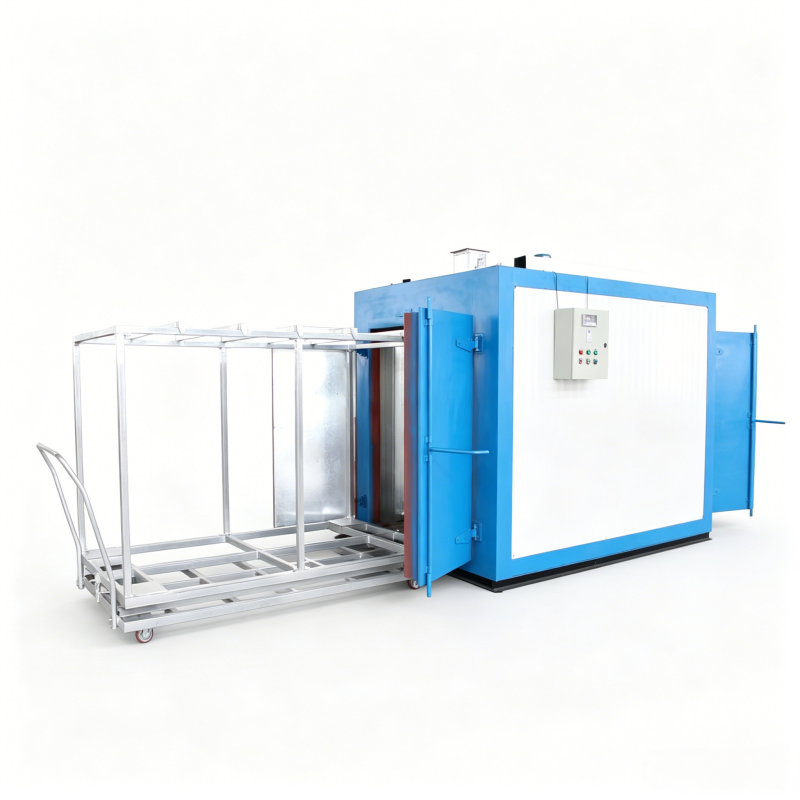

Features Heavy-gauge steel cabinet with powder-coated finish, rigid & anti-deformation Energy-saving curing oven with thick rock wool insulation Multi heating source optional: electric /gas/diesel Batch oven & continuous tunnel conveyor oven available Max design temperature: 250°Cwith temperature tolerance ±2℃ Full 6-sided sealed insulation, cool outer surface for safer workshop operation Technical Data Oven Dimension Customized Voltage 380V Max Temperature 250℃ Heating Option electric /gas/diesel Cabinet Wall 150mm Warm-up Time 15-30min(180℃) Temperature Difference ≤2℃

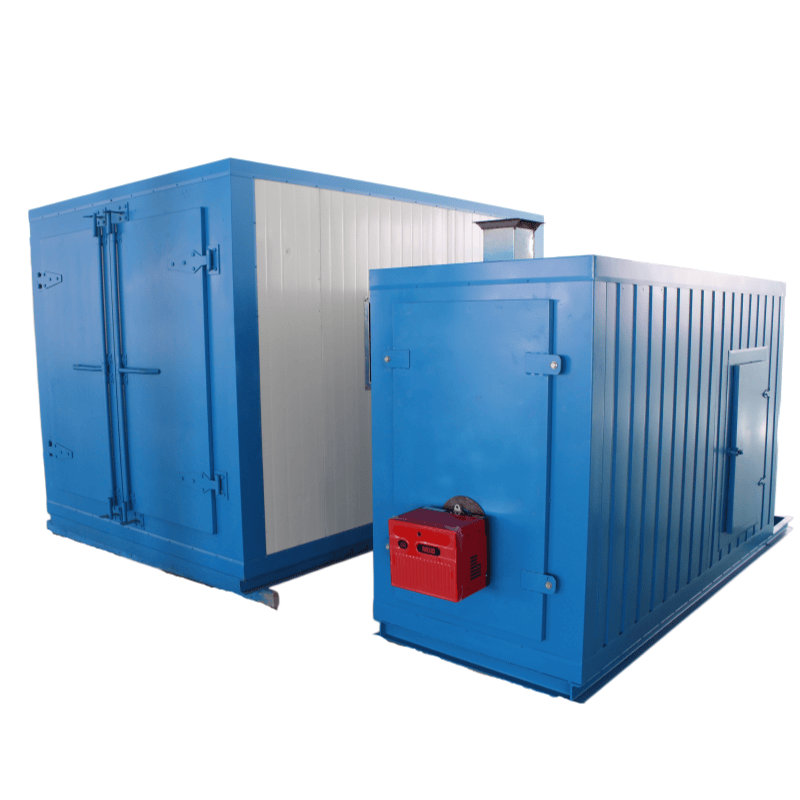

Features Heavy-gauge steel cabinet with powder-coated finish, rigid & anti-deformation Energy-saving curing oven with thick rock wool insulation Multi heating source optional: electric /gas/diesel Batch oven & continuous tunnel conveyor oven available Max design temperature: 250°Cwith temperature tolerance ±2℃ Full 6-sided sealed insulation, cool outer surface for safer workshop operation Technical Data Oven Dimension Customized Voltage 380V Max Temperature 250℃ Heating Option diesel Cabinet Wall 150mm Warm-up Time 15-30min(180℃) Temperature Difference ≤2℃
Features Heavy-gauge steel cabinet with powder-coated finish, rigid & anti-deformation Energy-saving curing oven with thick rock wool insulation Multi heating source optional: electric /gas/diesel Batch oven & continuous tunnel conveyor oven available Max design temperature: 250°Cwith temperature tolerance ±2℃ Full 6-sided sealed insulation, cool outer surface for safer workshop operation Technical Data Oven Dimension Customized Voltage 380V Max Temperature 250℃ Heating Option electric /gas/diesel Cabinet Wall 150mm Warm-up Time 15-30min(180℃) Temperature Difference ≤2℃
We are a direct manufacturer over 20 years experience, not a trading company. Our factory is located in Nantong City, Jiangsu, China — you are welcome to visit anytime.
1 set for standard models. Customized models also accept small orders. Standard equipment will take 1-3 days. Custom orders usually take 10-30 days, depending on design complexity.
We are ISO9001 / SGS certified, and our products meet CE standards.
Yes, 1 year warranty for manufacturing defects.
Yes, we offer on-site installation and training services upon request.
Yes, many of our parts are compatible with major brands.
Get in touch with our engineering team to find the right solution.
